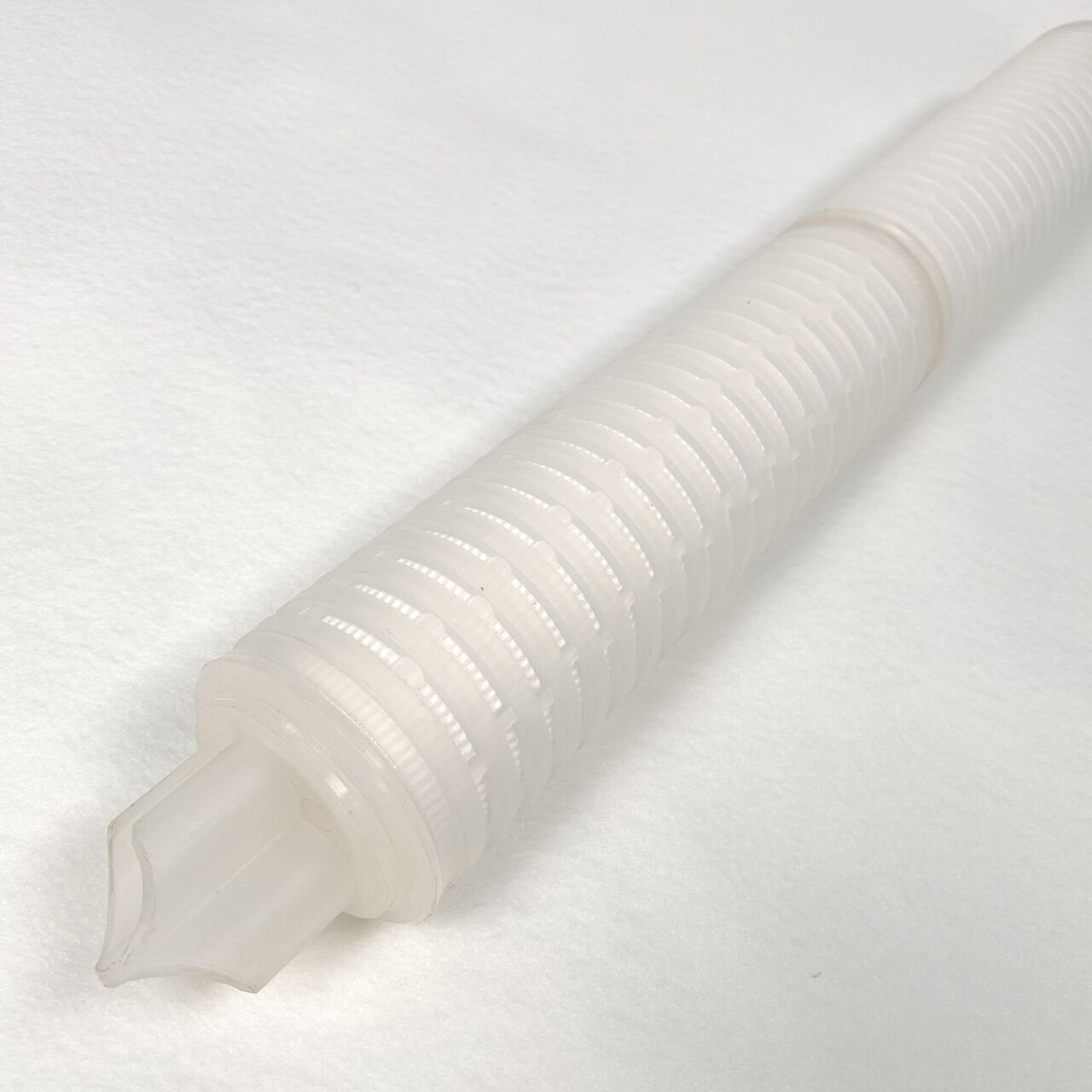

Nylon membrane pleated filter cartridge

Nylon membrane pleated filter cartridge is with consisting Of Enhanced Nylon Materials And Imported Nonwoven For Supporting Layers. Absolute rate filter efficiency.

Additional information

Outside Diameter

68mm

Filter Media

Nylon6(NL6)

O Rings

silicone, Buna-N,EPDM,Viton, Teflon Encapsulated Viton

Length

10-40 inch

End Caps

DOE; 222 Fin; 222 Flat; 226 Fin; 226 Flat

Micron Rating

0.1,0.22,0.45,0.65,1 (absolute rate)

Product Features

·   Consisting Of Enhanced Nylon Materials And Imported Nonwoven For Surpporting Layers

·   Wide Chemical Compatibility

·   High surface area design provides excellent flow capacity and long service life

·  May be autoclaved (121 oC, 30minutes cycles) or in situ steam sterilized (125 oC, 30 minutes cycles) for a maximum accumulated exposure of 10 hours.



Applications

·  Electronic Industry: Final Filtration For High Purity Water、Photoelectronic And Semi-Conductor Silicon Produced

·  Medicine Industry: Final Filtration For Raw Material Medicine 、Medicinal Solvent、Injection、Transfusion、Distilled Water Etc.

·  Chemical Industry: High Purity Chemical、Ketone、Ester、Ether、Macromolecule Alcohol And Alkaline Liquid

·  Food And Beverage Industry: Pure Water、Mineral Water、Fruit Juice、Beer And Wine.
